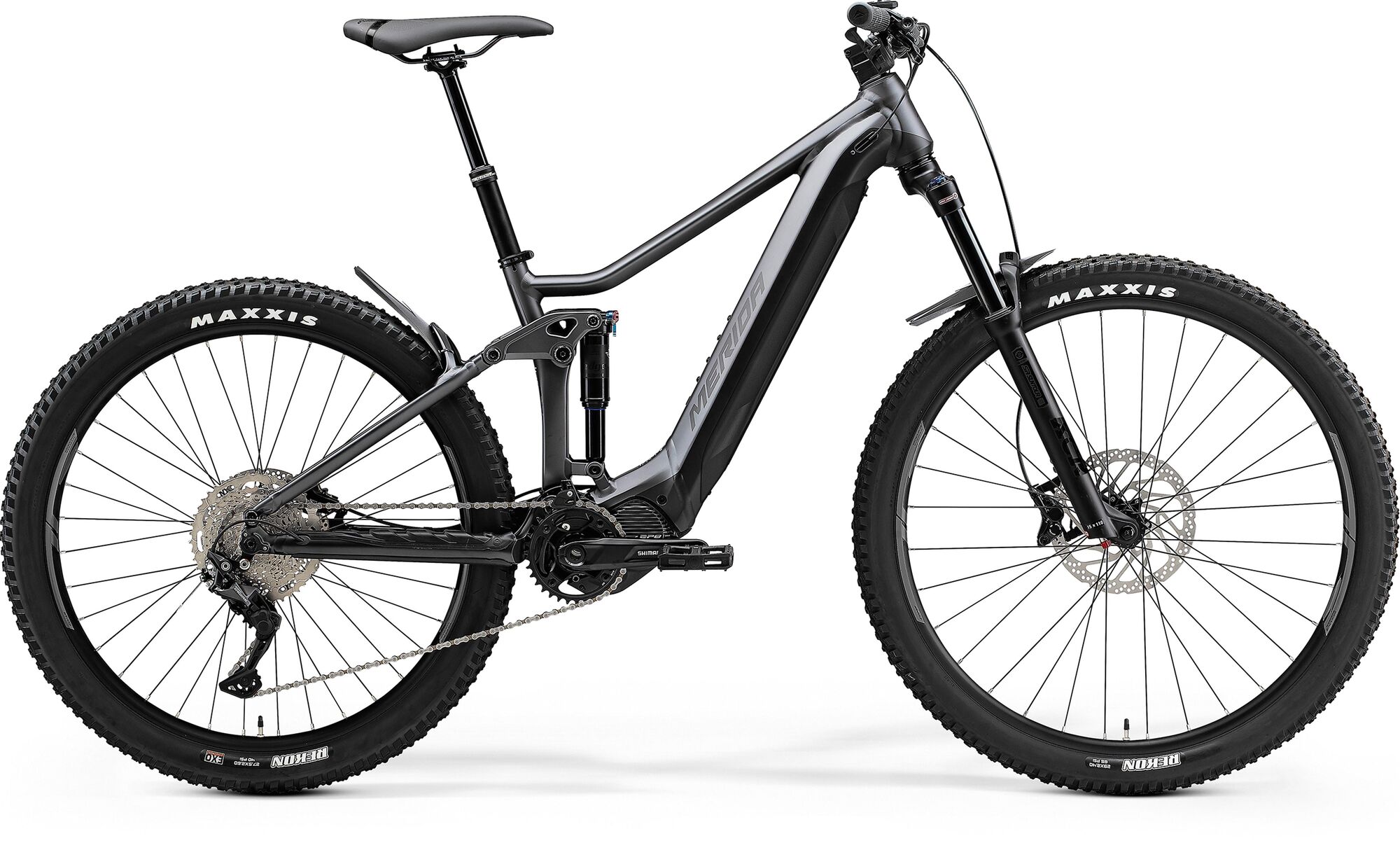

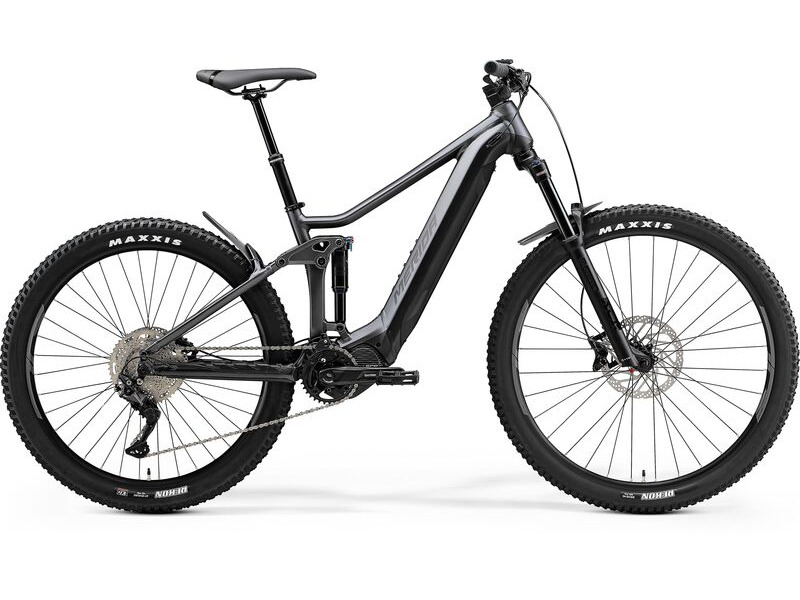

MERIDA eOne-Forty 400
Pricing
£3700.00
| Model Year | 2023 |
|---|---|
| Options | M Anthracite/Black In Stock (Warehouse) L Anthracite/Black In Stock (Warehouse) XL Anthracite/Black In Stock (Warehouse) |
| Style | The entry into full suspension ebiking. Sleek aluminium frame housing a 630Wh battery to power the 85Nm Shimano EP600 motor. Suntour suspension and Shimano Deore 10 speed drivetrain.The eOne-Sixty is the headline grabber of the Merida eBike range; for 3 generations it's been winning tests gathering accolades and generally hogging the limelight! The eOne-Forty shares exactly the same frame and design features but has different ride characteristics. The shock stroke on the eOne-Forty is shorter reducing rear travel to 133mm and creating a steeper seat angle. The shorter 140mm fork extends the reach delivering a slightly steeper head angle. In combination these small changes make the eOne-Forty more agile and playful; a highly competent climber that's perfect for all day riding. The mixed wheel size set up is carried over to give the e-full suspension bikes precise steering fantastic 'rolling over obstacles' behaviour yet maximum traction a 29er front wheel with a 2.5 tyre is combined with a 650B rear wheel equipped with a slightly wider 2.6 tyre. The perfect combination of precision playfulness and traction. All eOne-Forty models use the powerful Shimano EP600 85NM motor and bigger 630Wh battery (with the exception of frame size - S which uses 504Wh). Shimano's e-Tube app allows you to tailor power delivery to suit your riding style; you can set two profiles; one for shredding and one for cruising. |
| Frame | Lite III - Hydroformed 6061 double butted aluminium with integrated battery. Internal cable routing via Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Max. tyre size 27.5" x 2.8" |
| Forks | Suntour XCR34 LOR DS; Air; Boost; 140mm travel; Tapered; 51mm fork offset; Max. tyre size: 29" x 2.4" |
| Rear Derailleur | Shimano Deore RDM5120 10 |
| Shifters | Shimano Deore M4100 with Shimano SL -MT500-IL lever |
| Chainset | Shimano CRE70-B; 34 tooth chainring with Shimano FC-EM600; 165mm length crank |
| Bottom Bracket | Part of Shimano Steps motor |
| Chain | KMC e10s |
| Cassette | Shimano M4100; 11-46 teeth; 10 speed |
| Headset | Merida-8152 |
| Stem | Merida Expert eTR II; aluminium; 35mm diameter; 0 degree rise - stem length: 50mm all sizes; GoPro & Supernova mount |
| Handlebars | Merida Expert eTR; 780mm wide; 20mm rise |
| Front Brake | Shimano M4204; 4 piston hydraulic disc brake caliper with Shimano RT30; 203 mm rotor |
| Rear Brake | Shimano M4100 2 piston hydraulic disc brake caliper with Shimano RTEM300 180 mm rotor |
| Brake Levers | Shimano M4100 |
| Rims | Merida Comp TR; 29mm inner rim width; Aluminium |
| Front Hub | Shimano MT400-B; 110x15mm; 32 spokes; Center lock |
| Rear Hub | Shimano MT400-B; 148x12mm; 36 spokes; Center lock; including removable lever with 4/6mm Allen key |
| Spokes | Black stainless |
| Tyres | Front: Maxxis Rekon; 29" x 2.4"; wire bead; dual Rear: Maxxis Rekon; 27.5" x 2.6"; wire bead; EXO |
| Saddle | Merida Comp SL with V-mount |
| Seatpost | Merida Comp TR; 30.9mm diameter; in-line; Drop: 100mm (S), 125mm (M/L), 150mm (XL/XXL) |
| Pedals | VP Components - VPE-537 |
| Grips | Merida Expert EC |
| Rear Shock | Suntour RS-Edge-TR-LO-R8-M6; lockout |
| Battery | Shimano EN806; 630Wh internal battery |
| Drive Unit | Shimano Steps EP6; 85Nm |
| Accessories | CG-119PG front light CG-404RG rear light Shimano Satellite charging port; EW-CP100 |
As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying.
