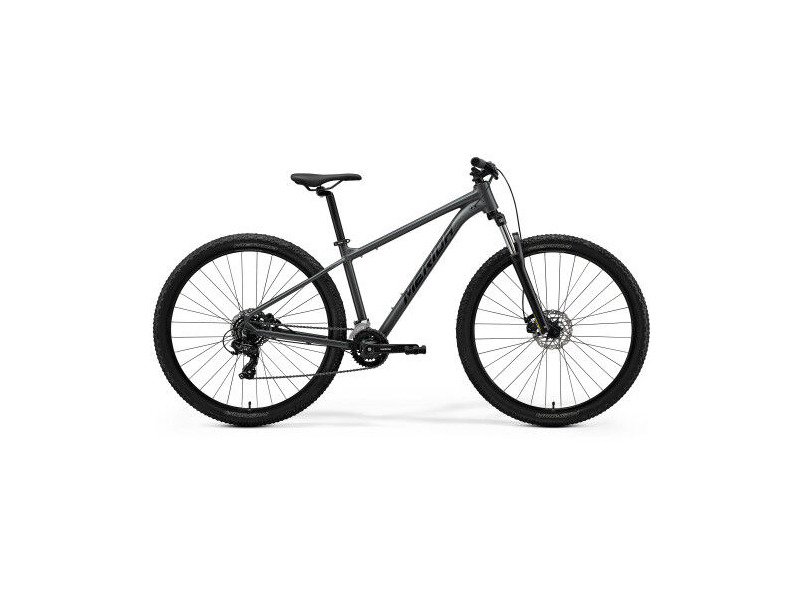

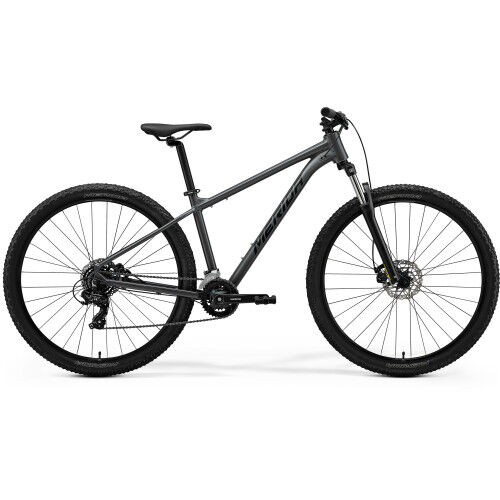

MERIDA Big Nine 15
| Model Year | 2027 |
|---|---|
| Options | M Silk Dark Grey (Black Out Of Stock L Silk Dark Grey (Black Out Of Stock XL Silk Dark Grey (Black Out Of Stock |
| Style | Updated TFS aluminium frame with clearance for 2.4" tyres Trail ready geometry for confident off-road handling 100mm Suntour suspension fork Shimano mechanical disc brakes Shimano 2 x 7 drivetrain 29" wheels with Kenda tyres Size tuned Merida finishing kit 29er hardtail with sophisticated TFS aluminium trail ready geometry frame, Shimano 2 x 7 drivetrain, SR Suntour 100mm fork, mechanical disc brakes, Shimano hubs, cassette and chainset. Merida's expertise for over 50 years has been building bombproof aluminium hardtails. The latest generation follows modern mountain bike trends - a longer reach combined with a shorter stem. The geometry features a steeper seat angle and slacker head angle for greater offroad capability but without compromising everyday usability. The sophisticated TFS frames feature: full internal cable routing for a clean, neat set up, tapered headtube offering future upgrade potential inboard disc brake mounts protect the brake and maximise stopping power; dropper post ready New XXS Big Seven size extends the wide range of sizes; Big Nine for taller riders, Big Seven for shorter riders. Riders in the middle can take riding style into account - for speed and efficiency choose a Big Nine, for agility choose a Big Seven. |
| Frame | TFS V - 6061 aluminium, double butted and technoformed. Tapered head tube. Chain stay mounted disc brake. Internal cable routing. Mudguard and kick stand mounts. BSA threaded BB. 135mm x 9mm axle. Max. tyre size 29" x 2.4" |
| Forks | SR Suntour XCS28; Coil; 100mm travel; 29x2.25" max. wheel size |
| Rear Derailleur | Shimano Tourney TY300 |
| Front Derailleur | Shimano Altus FD-M315 |
| Shifters | Front: Shimano Altus EF-500-2L Rear: Shimano Altus EF-500-7R |
| Chainset | Shimano M315; 36-22 teeth; Aluminium; Crank Length: 170mm for all sizes |
| Bottom Bracket | FSA TH-7420ST; 73-127.5mm |
| Chain | KMC Z7 |
| Cassette | Shimano CS-HG210-7; 12-32 teeth; 7 speed |
| Headset | FSA NO.55R/57SC/57B |
| Stem | Merida Comp CC; aluminium; 31.8mm diameter; 7 degree rise |
| Handlebars | Merida Comp CC; aluminium; 15mm rise; S - 720mm, (M-L) - 740mm, (XL-XXL) - 760mm |
| Front Brake | Shimano BR-M375; mechanical disc brake |
| Rear Brake | Shimano BR-M375; mechanical disc brake |
| Brake Levers | Shimano BR-M375; |
| Rims | Merida Comp CC; 20mm inner rim width; Aluminium |
| Front Hub | Shimano TX505; for SR Suntour 5TA; 100x9mm; 32 spoke; Centerlock |
| Rear Hub | Shimano QC300-HM; 135x9mm; 32 Spoke; Centerlock |
| Spokes | Black steel |
| Tyres | 29" |
| Front Tyre | Kenda K1080; 29x2.2" |
| Rear Tyre | Kenda K1080; 29x2.2" |
| Saddle | Merida Sport |
| Seatpost | Merida CC; aluminium; 30.9mm diameter; 15mm layback |
| Pedals | VP VPE-891 |
| Grips | Merida EC |
As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying.
