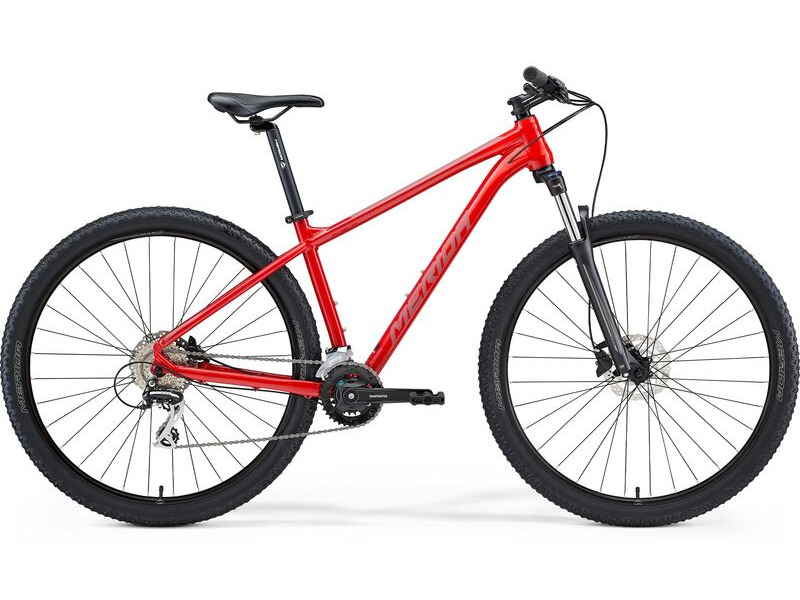

MERIDA Big Nine 20 - Power & Microshift

MERIDA Big Nine 20 - Power & Microshift click to zoom image

Pricing
£600.00
In Store Now

Options (L) 18.5 Red In Store Now
(XL) 20 Red In Store Now
Style 29er hardtail with sophisticated TFS aluminium frame 2 x 8 transmission lockout fork and Shimano hubs and chainset

Merida's heartland has always been bombproof aluminium hardtails. Half a century of frame building experience counts for a lot.

Merida UK chose to upgrade all the Big Nine and Big Seven bikes destined for the UK to use a sophisticated TFS frame featuring the latest technology:

full internal cable routing for a neat and clean set up
tapered headtube for future upgrade potential
inboard disc brake mounts to protect the brake and maximise stopping power

Merida offer a wide range of sizes Big Nine for taller riders Big Seven for shorter riders with a healthy overlap of sizes in between.

For riders in the middle riding style can be taken into account. If you are looking for speed and efficiency choose a Big Nine if you are looking for agility choose a Big Seven.
Frame TFS III - 6061 aluminium, double butted and technoformed. Tapered head tube. Chain stay mounted disc brake. Internal cable routing. Mudguard and kick stand mounts. BSA threaded BB. 135mm x 9mm axle. Max Tyre clearance 29" x 2.25"
Forks SunTour XCT30 HLO; Coil; 100mm travel; lockout. Max tyre clearance 29" x 2.25"
Rear Derailleur Shimano RD-M360
Front Derailleur Shimano FD-M315-TS
Shifters microSHIFT TS39
Chainset Shimano FC-M315-2; 36-22 chainwheel with 170mm - S, 175mm - M/XXL length crank
Bottom Bracket FSA TH-7420ST-W, Cartridge Bearing
Chain Sunrace M84
Cassette Sunrace CSM668; 11-32 teeth; 8 speed
Headset Merida M2345
Stem Merida CC; aluminium; 31.8mm diameter; 6 degree rise - Length : 70 mm-S, 80 mm-M, 90 mm-L, 100 mm-XL, 110 mm-XXL
Handlebars Merida CC; aluminium; 690mm wide; 15mm rise
Front Brake Power DS-100 HT hydraulic brake caliper with Shimano RT10; 160mm rotor
Rear Brake Power DS-100 HT hydraulic brake caliper with Shimano RT10; 160mm rotor
Brake Levers Power DS-100 HT
Rims Merida CC; 17mm inner rim width; Material: aluminium
Front Hub Shimano TX505; 100x9mm; 32 spokes; Centerlock
Rear Hub Shimano TX505; 135x9mm; 32 spokes; Centerlock
Spokes Black steel
Tyres Merida K1080; 29" x 2.2"; wire bead
Saddle Merida Sport comfort
Seatpost Merida CC; aluminium; 30.9mm diameter; 15mm lay back
Pedals VP Components, VPE-891
Grips Merida EC
As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying.
