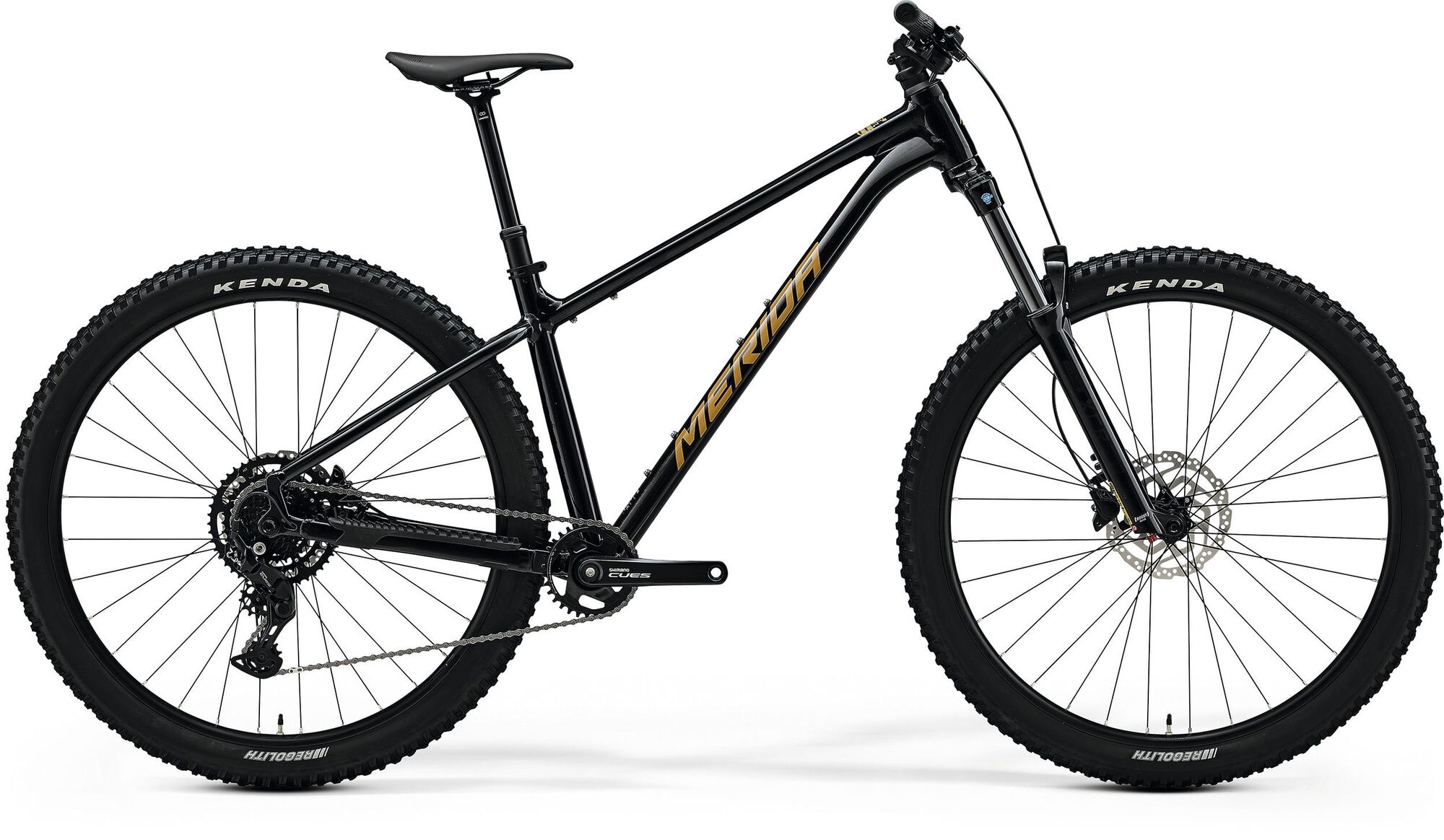

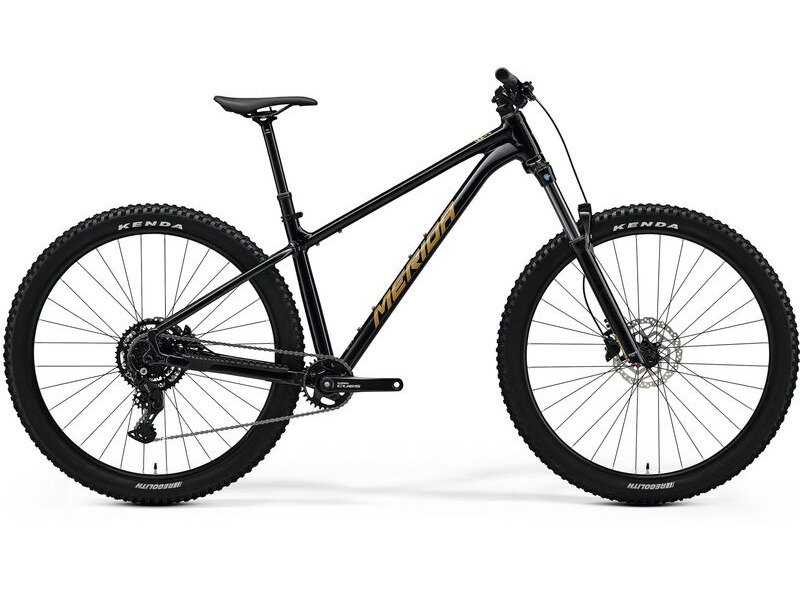

MERIDA Big Trail 300
Pricing
£1100.00
| Model Year | 2026 |
|---|---|
| Options | XShort Black (Brown) In Stock (Warehouse) Short Black (Brown) In Stock (Warehouse) Mid Black (Brown) In Stock (Warehouse) Long Black (Brown) In Stock (Warehouse) XLong Black (Brown) In Stock (Warehouse) |
| Style | The same fun handling and trail taming performance as its bigger brothers but in a wallet-friendly specification. This is affordable trail performance at its best. 29 Wheels 140mm air fork 1 x 9 drivetrain and a dropper postThe original Big Trail concept was the result of a few UK dealers discussing the ideal UK trail bike with the Merida R&D chief - simple: 140mm air fork 29 wheels 1 x transmission and a dropper post. Now in its 2nd iteration Big Trail is a fun-packed and hugely capable trail bike. Its progressive geometry combines a steep 76.5deg. seat angle with a slack 64.0deg. head angle giving great climbing characteristics and plenty of stability when the terrain gets steep or rough. Sizing follows the Agilometer principle which means most sizes work for most body sizes so that riding style can be factored in. If you want to go fast take the longer size for agility take a shorter size. |
| Frame | TFS - 6061 double butted technoformed aluminium, smooth welding, Boost axle standard, tapered head tube, inboard disc mounts, internal cable routing, BSA BB standard, Max tyre size 29" x 2.5" |
| Forks | SR Suntour XCR34 2CR; Air; 140 mm travel; Tapered; lockout; 44mm fork offset; 29x2.4" max. tyre size |
| Rear Derailleur | Shimano CUES U4000 |
| Shifters | Shimano CUES U4000 |
| Chainset | Shimano CUES UT-400-1; 32 tooth chainset; Crank length: 170mm |
| Bottom Bracket | Shimano BB-UN101; 73mm |
| Chain | KMC xGlide |
| Cassette | SunRace U9; CS-U980 9AZ; 11-46 teeth; 9 speed |
| Headset | Acros ICR Merida External neck; Upper and lower IPS sealing |
| Stem | Merida Comp TR; material: aluminium; 35 mm diameter; 0 degree rise; Length: 40mm |
| Handlebars | Merida Comp TR II; material: aluminium; 780mm wide; 35mm rise |
| Front Brake | Shimano MT200; 2 piston with Shimano RT10; 180mm |
| Rear Brake | Shimano MT200; 2 piston with Shimano RT10; 180mm |
| Rims | Merida Comp CC II; 25mm inner rim width; material: aluminium; tubeless ready |
| Front Hub | Shimano TC500-B; 110x15mm; 32 spoke; Centerlock |
| Rear Hub | Shimano TC500-HM-B; 148x12mm; 32 spoke; Centerlock |
| Spokes | Black stainless |
| Tyres | Kenda Regolith; 29x2.4"; wired |
| Saddle | Merida Comp SL; V-mount |
| Seatpost | Merida Comp TR II; 34.9mm diameter; in-line; XShort - 150mm, (Short-XLong) - 170mm seat post travel |
| Pedals | Not included |
| Grips | Merida Comp TR |
As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying.
