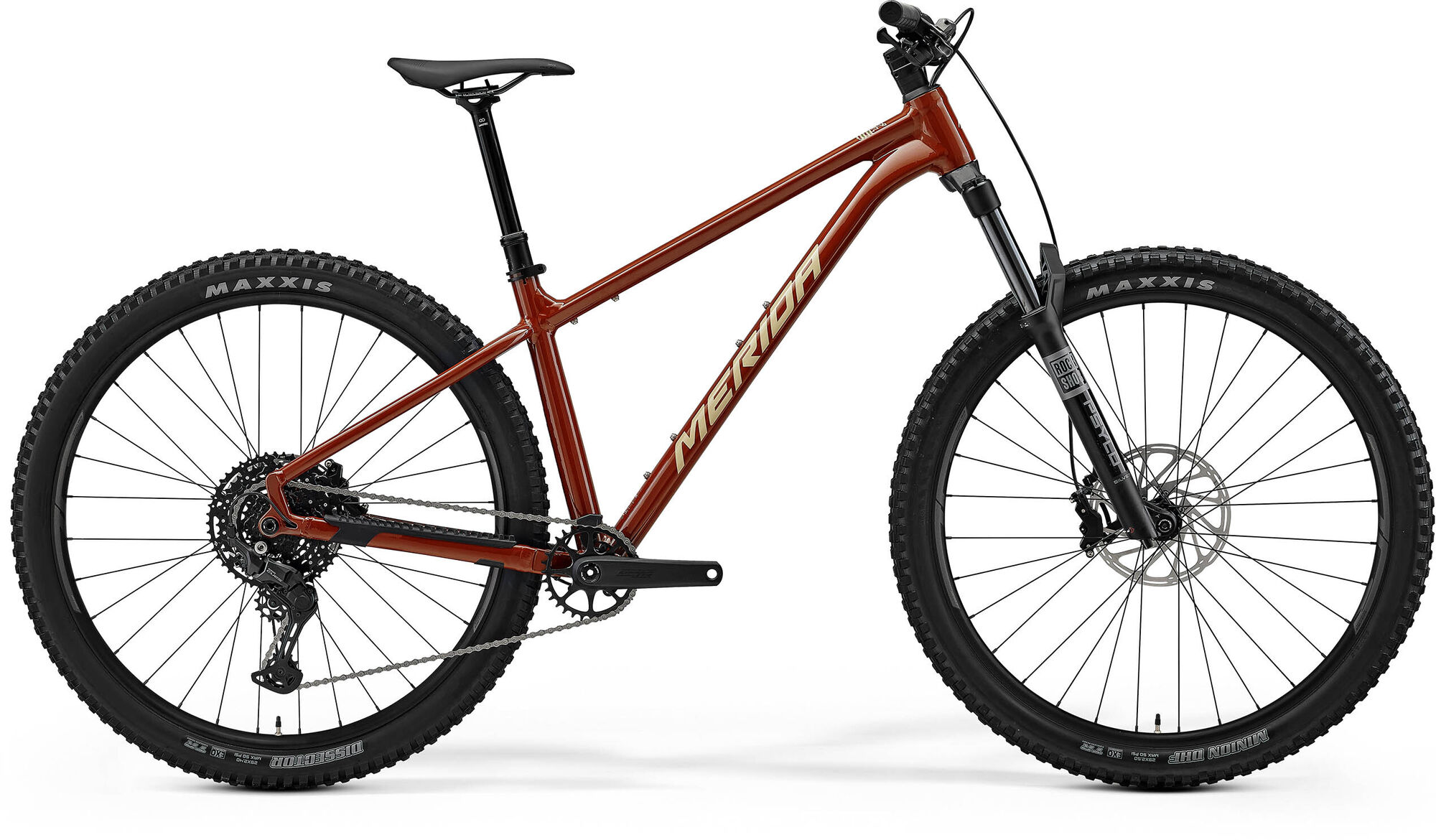

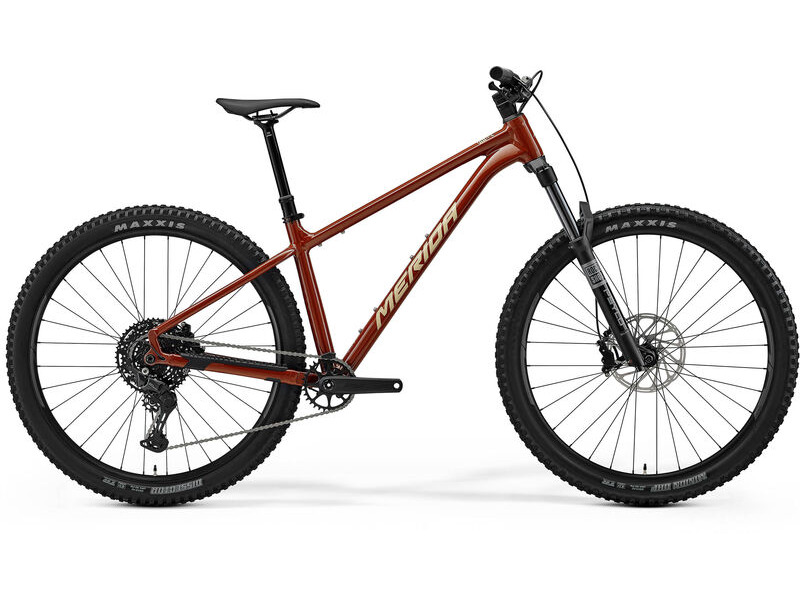

MERIDA Big Trail 500
Pricing
£1500.00
| Model Year | 2026 |
|---|---|
| Options | Short Mokka (Brown) In Stock (Warehouse) Mid Mokka (Brown) In Stock (Warehouse) Long Mokka (Brown) In Stock (Warehouse) XLong Mokka (Brown) In Stock (Warehouse) |
| Style | 29er aluminium hardcore hardtail with RockShox Psylo Silver RC 140mm Air sprung fork Shimano CUES 1 x 10 drivetrain and powerful SRAM DB4 4 piston hydraulic disc brakesThe original Big Trail concept was the result of a few UK dealers discussing the ideal UK trail bike with the Merida R&D chief - simple: 140mm air fork 29 wheels 1 x transmission and a dropper post. Now in its 2nd iteration Big Trail is a fun-packed and hugely capable trail bike. Its progressive geometry combines a steep 76.5deg. seat angle with a slack 64.0deg. head angle giving great climbing characteristics and plenty of stability when the terrain gets steep or rough. Sizing follows the Agilometer principle which means most sizes work for most body sizes so that riding style can be factored in. If you want to go fast take the longer size for agility take a shorter size. |
| Frame | TFS - 6061 double butted technoformed aluminium, smooth welding, Boost axle standard, tapered head tube, inboard disc mounts, internal cable routing, BSA BB standard, Max tyre size 29" x 2.5" |
| Forks | RockShox Psylo Silver RC; Air; 140 mm travel; platform |
| Rear Derailleur | Shimano Cues U6000; GS |
| Shifters | Front: Shimano SL-MT500-L Rear: Shimano CUES U6000 |
| Chainset | Merida Expert TR II; 32 tooth chainset; Crank length: (XShort-Long) - 165mm, Xlong - 170mm |
| Bottom Bracket | attached |
| Chain | KMC xGlide |
| Cassette | Shimano LG300; 11-48 teeth; 10 Speed |
| Headset | Acros ICR Merida External neck; Upper and lower IPS sealing |
| Stem | Merida Expert eTRII; material: aluminium; 35 mm diameter; 0 degree rise; Length: 40mm |
| Handlebars | Merida Comp TR II; material: aluminium; 780mm wide; 35mm rise |
| Front Brake | SRAM DB4; 4 piston with SRAM CenterLine; 200mm |
| Rear Brake | SRAM DB4; 4 piston with SRAM CenterLine; 180mm |
| Rims | Merida Comp TR; 29mm inner rim width; material: aluminium; Tubeless ready (Stans 30mm tubeless tape installed and valves not included) |
| Front Hub | Shimano TC500-B; 110x15mm; 32 spoke; Centerlock |
| Rear Hub | Shimano TC500-HM-B; 148x12mm; 32 spoke; Centerlock |
| Spokes | Double Butted Black stainless w/black nipples |
| Front Tyre | Maxxis Minion DHF; 29x2.5"; kevlar bead; TR EXO Dual |
| Rear Tyre | Maxxis Dissector; 29x2.4"; kevlar bead; TR EXO Dual |
| Saddle | Merida Comp SL; 25% recycled material; V-mount |
| Seatpost | Merida Expert TR II; 34.9mm diameter; in-line; XShort - 150mm, (Short-Mid) - 170mm, Long - 200mm, XLong - 230mm seat post travel |
| Pedals | Not included |
| Grips | Merida Comp TR |
As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying.
