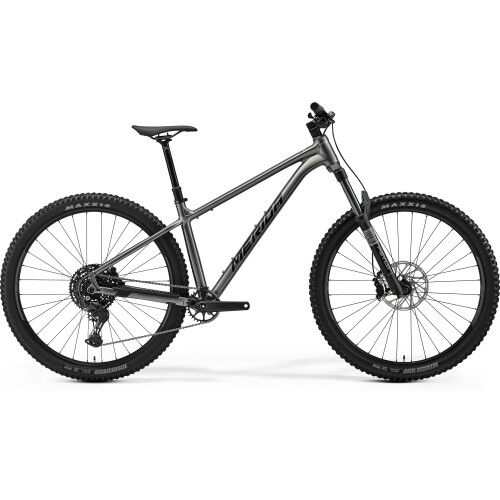

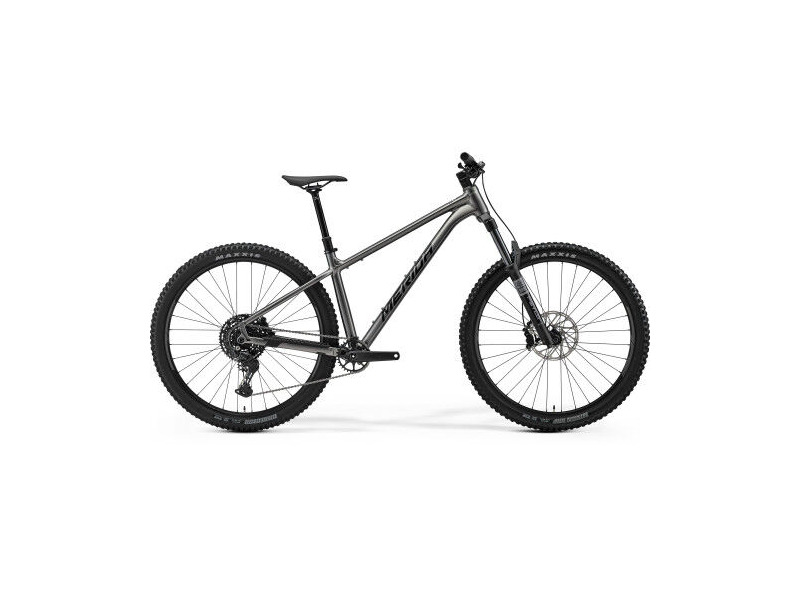

MERIDA Big Trail 500
Pricing
£1400.00
| Model Year | 2027 |
|---|---|
| Options | XS Gunmetal Grey (Black) In Stock (Warehouse) S Gunmetal Grey (Black) In Stock (Warehouse) M Gunmetal Grey (Black) In Stock (Warehouse) L Gunmetal Grey (Black) In Stock (Warehouse) XL Gunmetal Grey (Black) In Stock (Warehouse) |
| Style | Modern trail bike geometry with long reach, slack head angle and steep seat angle 140mm RockShox Psylo Silver RC Air fork 1 x 10 Shimano CUES drivetrain Powerful SRAM DB4 4 piston hydraulic disc brakes Dropper seat post 29" Boost standard wheels with 2.5" front and 2.4"rear tyres 29er aluminium hardcore hardtail with RockShox Psylo Silver RC 140mm Air sprung fork, Shimano CUES 1 x 10 drivetrain and powerful SRAM DB4 4 piston hydraulic disc brakes The original Big Trail concept was the result of a few UK dealers discussing the ideal UK trail bike with the Merida R&D chief - simple: 140mm air fork, 29" wheels, 1 x transmission and a dropper post. Now in its 2nd iteration Big Trail is a fun-packed and hugely capable trail bike. Its progressive geometry combines a steep 76.5° seat angle with a slack 64.0° head angle giving great climbing characteristics and plenty of stability when the terrain gets steep or rough. Sizing follows the Agilometer principle which means most sizes work for most body sizes so that riding style can be factored in. If you want to go fast, take the longer size, for agility, take a shorter size. |
| Frame | TFS - 6061 double butted technoformed aluminium, smooth welding, Boost axle standard, tapered head tube, inboard disc mounts, internal cable routing, BSA BB standard, Max tyre size 29" x 2.5" |
| Forks | Rock Shox Psylo Silver RC; Air; 140mm travel; platform |
| Rear Derailleur | Shimano Cues U6000; GS |
| Front Derailleur | N/A |
| Shifters | Front: Shimano SL-MT500-L Rear: Shimano CUES U6000 |
| Chainset | Merida Expert TR II; 32 teeth; Crank Length: 165mm for all sizes |
| Chain | KMC xGlide |
| Cassette | Shimano LG300; 11-48 teeth; 10 Speed |
| Headset | Acros ICR Merida External neck; Upper and lower IPS sealing |
| Stem | Merida Expert eTRII; aluminium; 35mm diameter; 0 degree rise |
| Handlebars | Merida Comp TR II; aluminium; 780mm wide; 35mm rise |
| Front Brake | Sram DB4; 4 piston |
| Rear Brake | Sram DB4; 4 piston |
| Brake Levers | Sram DB4 |
| Rims | Merida Comp TR; 29mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included) |
| Front Hub | Shimano TC500-B; 110x15mm; 32 Spoke; Centerlock |
| Rear Hub | Shimano TC500-HM-B; 148x12mm; 32 Spoke; Centerlock |
| Spokes | Double Butted Black stainless w/black nipples |
| Tyres | 29" |
| Front Tyre | Maxxis Minion DHF; 29x2.5"; fold; TR EXO Dual |
| Rear Tyre | Maxxis Dissector; 29x2.4"; fold; TR EXO Dual |
| Saddle | Merida Comp SL; 25% recycled material; V-mount |
| Seatpost | Merida Expert TR II; 34.9mm diameter; in-line; XShort: 150mm seat post travel - Short/Mid : 170mm seat post travel - Long: 200mm seat post travel - XLong: 230mm seat post travel |
| Pedals | NONE |
| Grips | Merida Comp TR |
As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying.
