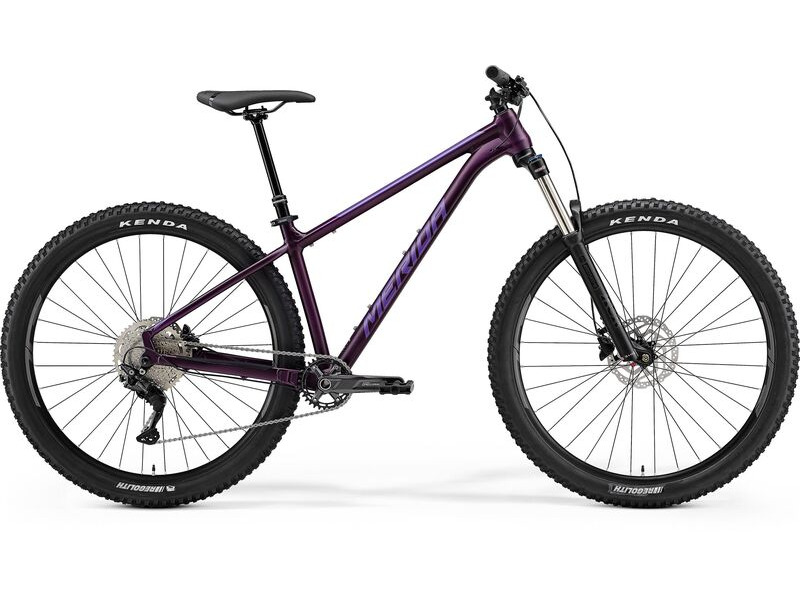

MERIDA Big Trail 400
Pricing
£1200.00
Offer £799.00
| Model Year | 2023 |
|---|---|
| Options | S Purple Out Of Stock M Purple Out Of Stock L Purple Out Of Stock XL Purple Out Of Stock XXL Purple Out Of Stock |
| Style | 29er aluminium hardcore hardtail with Suntour XCR34 140mm air fork Shimano Deore 1 x 10 drivetrain and a dropper seat post. The Merida Big Trail has been a hit with the mountain bike press and trail riders alike. Bikeboard.cc confirmed that we 'nailed it' while MBR IMB and many more confirmed that the Big Trail is firmly at the top of the trail hardtail game. Conversations between UK bike shops and Merida's German R & D team resulted in the development of a fun-packed and hugely capable bike. Trail bike geometry combined with a long travel 140 mm fork and grippy 2.4 wide 29er trail tyres make this the perfect companion for exciting trail sessions and demanding all-day rides over rough terrain. It's perfectly suited to UK riding. The modern trail bike geometry has a slack enduro inspired 65.5deg. head angle steep seat angle and a long reach. A short seat tube delivers a low standover height giving plenty of space to manoeuvre on the bike when the trail gets technical but still accommodates a long travel dropper post. The geometry means most sizes work for most body sizes so riding style can be factored in. If you want to go crazy fast take the longer size for agility take a shorter size. The Big Trail has hidden talents in addition to two sets of bottle bosses there's a trail mount under the top tube allowing you to carry tools and extra gear on the bike. It's also possible to fit mudguards and a rack if you want to trek further afield. |
| Frame | TFS - 6061 double butted technoformed aluminium, smooth welding, Boost axle standard, tapered head tube, inboard disc mounts, internal cable routing, BSA BB standard, Max tyre size 29" x 2.5" |
| Forks | Suntour XCR34 LOR; Air; 140mm travel; Tapered; lockout; 51mm fork offset. Max tyre size: 29" x 2.4" |
| Rear Derailleur | Shimano Deore M5120 Shadow+ |
| Shifters | Shimano Deore M4100 with Shimano SL -MT500-IL lever |
| Chainset | Shimano Deore M5100; 32 tooth chainset. Crank length: 170mm (S), 175mm (M,L,XL,XXL) |
| Bottom Bracket | Shimano Deore |
| Chain | KMC X10 |
| Cassette | Shimano Deore M4100; 11-46 teeth; 10 speed |
| Headset | Merida M4455 |
| Stem | Merida Comp CC; aluminium; 31.8mm diameter; 6 degree rise - Stem length: 50mm (all sizes) |
| Handlebars | Merida Expert CC; aluminium; 740mm wide; 10mm rise |
| Front Brake | Tektro HD-M275 2 piston hydraulic disc brake caliper with Shimano RT10 180 mm rotor |
| Rear Brake | Tektro HD-M275 2 piston hydraulic disc brake caliper with Shimano RT10 180 mm rotor |
| Brake Levers | Tektro HD-M275 |
| Rims | Merida Comp TR; 29mm inner rim width; Aluminium. Tubeless ready (tubeless tape and valves not included) |
| Front Hub | Shimano MT400-B; 110x15mm; 32 spokes; Center lock |
| Rear Hub | Shimano MT400-B; 148x12mm; 32 spokes; Center lock; including removable lever with 6mm Allen key |
| Spokes | Black stainless |
| Tyres | Kenda Regolith; 29" x 2.4"; wire bead |
| Saddle | Merida Comp SL with V-mount |
| Seatpost | Merida Comp TR; 30.9mm diameter; in-line; Drop: 125mm (S), 150mm (M/L), 175mm (XL/XXL) |
| Pedals | VP Components, VPE-891 |
| Grips | Merida Comp EC |
As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying.
