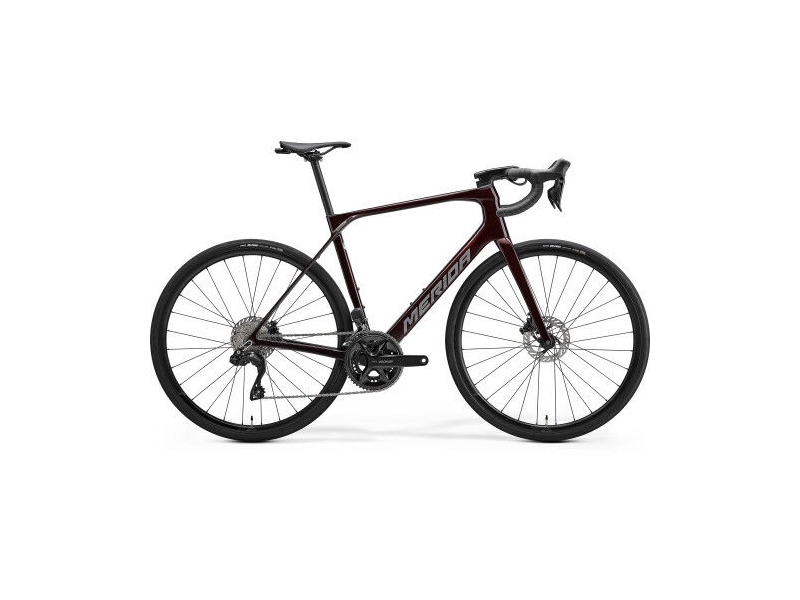

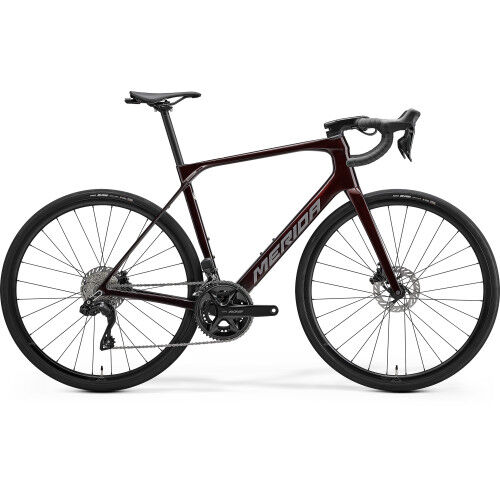

MERIDA Scultura Endurance 5000
Pricing
£2900.00
| Model Year | 2027 |
|---|---|
| Options | XXS Passion Red (Gunmetal Grey) Usually despatched in 7-10 days XS Passion Red (Gunmetal Grey) Usually despatched in 7-10 days S Passion Red (Gunmetal Grey) Usually despatched in 7-10 days M Passion Red (Gunmetal Grey) Usually despatched in 7-10 days L Passion Red (Gunmetal Grey) Usually despatched in 7-10 days XL Passion Red (Gunmetal Grey) Usually despatched in 7-10 days |
| Style | Comfortable, confidence inspiring geometry Carbon frame and fork 2 x 12 Shimano 105 Di2 transmission Shimano 105 compact chainset Shimano 105 hydraulic disc brakes Carbon seat post Maxxis Re-Fuse 32c tyres The entry into electronic shifting for our test and award-winning Scultura Endurance bike. Lightweight carbon frame and fork with Shimano 105 Di2 groupset and aluminium wheelset Positioned between Silex and Scultura in the Merida road range the Scultura Endurance is aimed at tarmac adventure riding with geometry designed for riders who want to enjoy long hours in the saddle while being comfortable and relaxed on the bike. The modern comfort-orientated geometry endows the Scultura Endurance with a longer head tube creating a more upright and comfort-orientated seating position. The slacker head angle and slightly longer wheelbase give the bike more stability at speed. To increase frame stiffness and steering precision the Scultura Endurance uses 12mm bolt through axles and a full carbon tapered fork. There- ?s plenty of tyre clearance (up to 35c, or 32c if you fit mudguards), larger volume tyres can be run at lower pressures to provide more comfort even on pothole littered lanes. Merida have used plenty of neat touches such as routing shifting and brake cables through the headset to declutter the cockpit. Even the seat clamp is hidden and the rear seat stay bridge can be removed if it isn- ?t used to mount mudguards. All Scultura Endurance (except are 200) have powerful hydraulic disc brakes. Calipers are flat mounted for a neat, flush fit on CNC'd aluminium Disc Cooler fins which reduce operating temperatures by up to 35%. |
| Frame | CF3 carbon, Nano Matrix for impact resistance. Internal cable routing, 142 x12mm axle standard, BB86 BB standard, flat mount rear brake with Disc Cooler, 1 1/2" headtube. Fully integrated seat clamp. Max tyre size 700 x 35c (700 x 32c with mudguard) |
| Forks | Scultura Endurance CF3 Disc; carbon; 700x35C max. wheel size |
| Rear Derailleur | Shimano 105 Di2 |
| Front Derailleur | Shimano 105 Di2 |
| Shifters | Front: Shimano 105 disc Di2 Rear: Shimano 105 disc Di2 |
| Chainset | Shimano 105 R7100; 50-34 teeth; Crank Length: (XXS-XS) - 165mm, (S-M) - 170mm, (L-XL) - 172.5mm |
| Bottom Bracket | Shimano SM-BB71-41B; Pressfit 86.5mm |
| Chain | Shimano M6100-12 |
| Cassette | Shimano 105 R7101; 11-34 teeth; 12 speed |
| Headset | Merida Team SL (SE-301 neck) |
| Stem | Merida Expert SL 2PII; aluminium; -9° degree rise; incl. Merida SMART MOUNT |
| Handlebars | Merida Expert SL II; aluminium; (3XS-S) - 380mm, (M-L) - 400mm, XL - 420mm |
| Front Brake | Shimano 105; Disc |
| Rear Brake | Shimano 105; Disc |
| Brake Levers | Shimano 105 |
| Rims | Merida Expert SL III; 23mm inner rim width; 26mm deep; aluminium; Tubeless ready (tubeless tape and valves not included) |
| Front Hub | Shimano TC500; 100x12mm; 28 spoke; Centerlock |
| Rear Hub | Shimano TC500-HL; 12x142mm; 28 spoke; Centerlock |
| Spokes | Double Butted Black stainless |
| Tyres | Maxxis RE-FUSE; 700x32C; fold |
| Saddle | Merida Expert SL II; V-mount; incl. Merida minitool |
| Seatpost | Merida Expert SL; 27.2mm diameter; in-line; carbon |
| Pedals | NONE |
| Tape | Merida ROAD Expert |
| Miscellaneous | Garmin Carrier + Garmin insert*2 + GoPro/Light Mount + Disc cooler F/R |
As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying.
