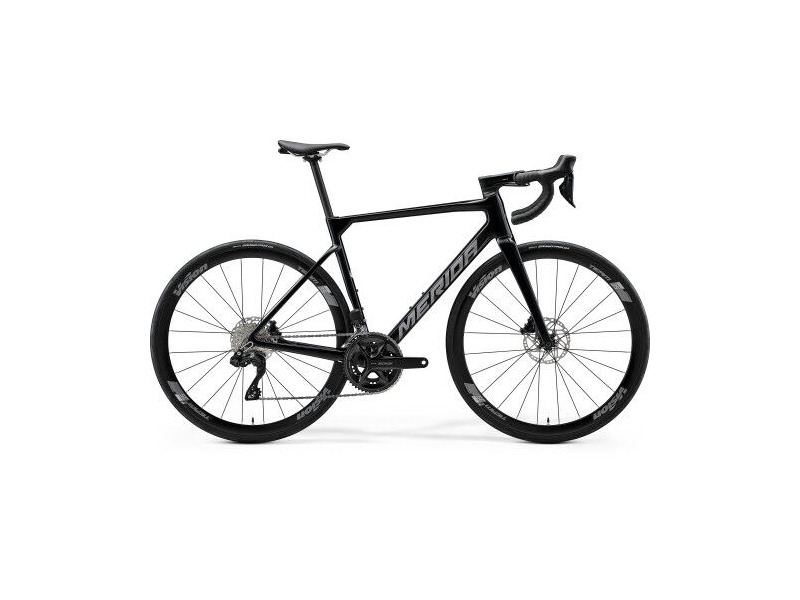

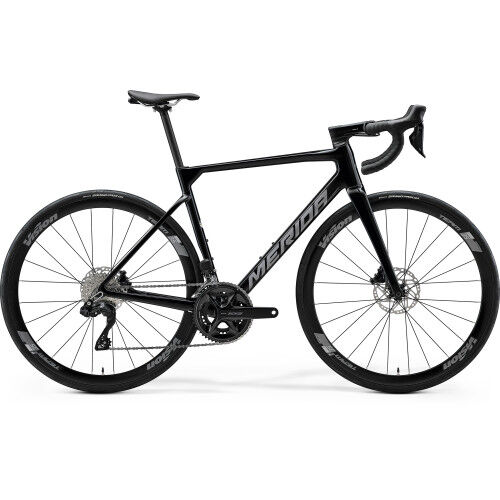

MERIDA Scultura 5000
Pricing
£3000.00
| Model Year | 2027 |
|---|---|
| Options | XXS Metallic Black (Gunmetal Grey In Stock (Warehouse) XS Metallic Black (Gunmetal Grey In Stock (Warehouse) S Metallic Black (Gunmetal Grey In Stock (Warehouse) M Metallic Black (Gunmetal Grey In Stock (Warehouse) L Metallic Black (Gunmetal Grey In Stock (Warehouse) XL Metallic Black (Gunmetal Grey In Stock (Warehouse) |
| Style | Lightweight CF3 Carbon frame (approx. 997g in size M) Full carbon tapered fork Shimano 105 24 speed Di2 drivetrain Shimano 105 chainset Shimano 105 hydraulic disc brakes with Disc Cooler Technology Vision Team 35 aluminium wheelset Carbon seat post The entry into electronic shifting. Lightweight carbon frame and fork with Shimano 105 Di2 groupset and Vision Team 35 aluminium wheelset The Scultura is the go to all-rounder, now in its fifth iteration with improved aerodynamics thanks to shared learnings from the award-winning Reacto aero bike. Yet, it remains true to its lightweight, agility and rider comfort focus demonstrating outstanding compliance to keep the body fresh for the final sprint or ascent. When it comes to final efforts, the geometry is World Tour, winning stages of the Vuelta and Tour even before it was officially launched helping prove its whippet-like acceleration and class-leading climbing pedigree. |
| Frame | CF3 V carbon, race geometry. Internal cable routing, 142 x 12mm axle standard, flat mount rear brakes with Disc Cooler, Pressfit 86.5 BB standard, 1 1/2" to 1 1/4" headtube. Max tyre size - 30c |
| Forks | Scultura CF3 Disc; carbon; 700x30C max. wheel size |
| Rear Derailleur | Shimano 105 Di2 |
| Front Derailleur | Shimano 105 Di2 |
| Shifters | Front: Shimano 105 disc Di2 Rear: Shimano 105 disc Di2 |
| Chainset | Shimano 105 R7100; 50-34 teeth; Crank Length: 3XS - 160mm, (XXS-XS) - 165mm, (S-M) - 170mm, (L-XL) - 172.5mm |
| Bottom Bracket | Shimano SM-BB71-41B; Pressfit 86.5mm |
| Chain | Shimano M6100-12 |
| Cassette | Shimano 105 R7101; 11-34 teeth; 12 speed |
| Headset | FSA ACR |
| Stem | FSA SMR-II; aluminium; -10° |
| Handlebars | Merida Expert SL II; aluminium; (3XS-S) - 380mm, (M-L) - 400mm, XL - 420mm |
| Front Brake | Shimano 105; Disc |
| Rear Brake | Shimano 105; Disc |
| Brake Levers | Shimano 105 |
| Rims | Vision Team 35 Clincher Disc Centerlock; 19mm inner rim width; 35mm deep; aluminium; Tubeless tape ready |
| Front Hub | Merida Expert SL |
| Rear Hub | Merida Expert SL |
| Tyres | Continental Grand Prix TR; 700x28C; fold; tubeless ready |
| Saddle | Merida Expert SL II; V-mount; incl. Merida minitool |
| Seatpost | Merida Expert SL; 27.2mm diameter; in-line; carbon |
| Pedals | NONE |
| Tape | Merida ROAD Expert |
| Miscellaneous | Garmin Carrier + Garmin insert*2 + GoPro/Light Mount + Disc cooler F/R |
As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying.
