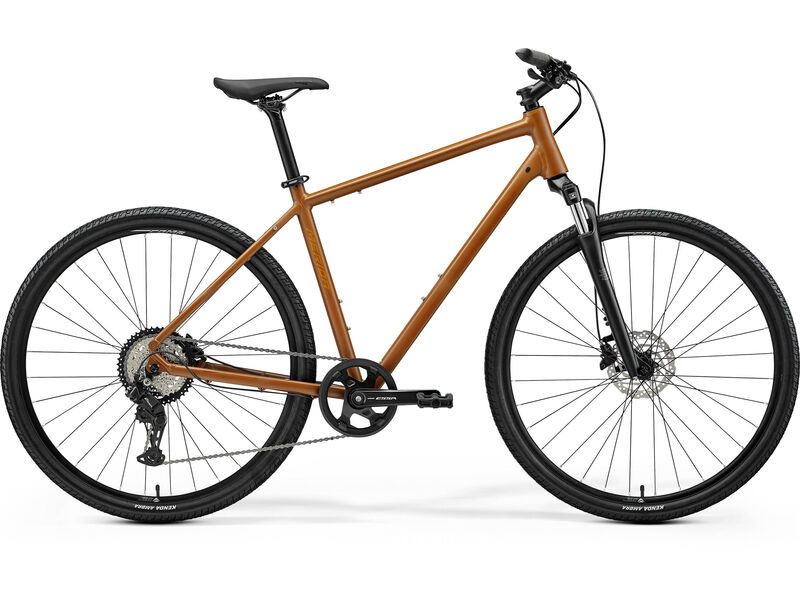

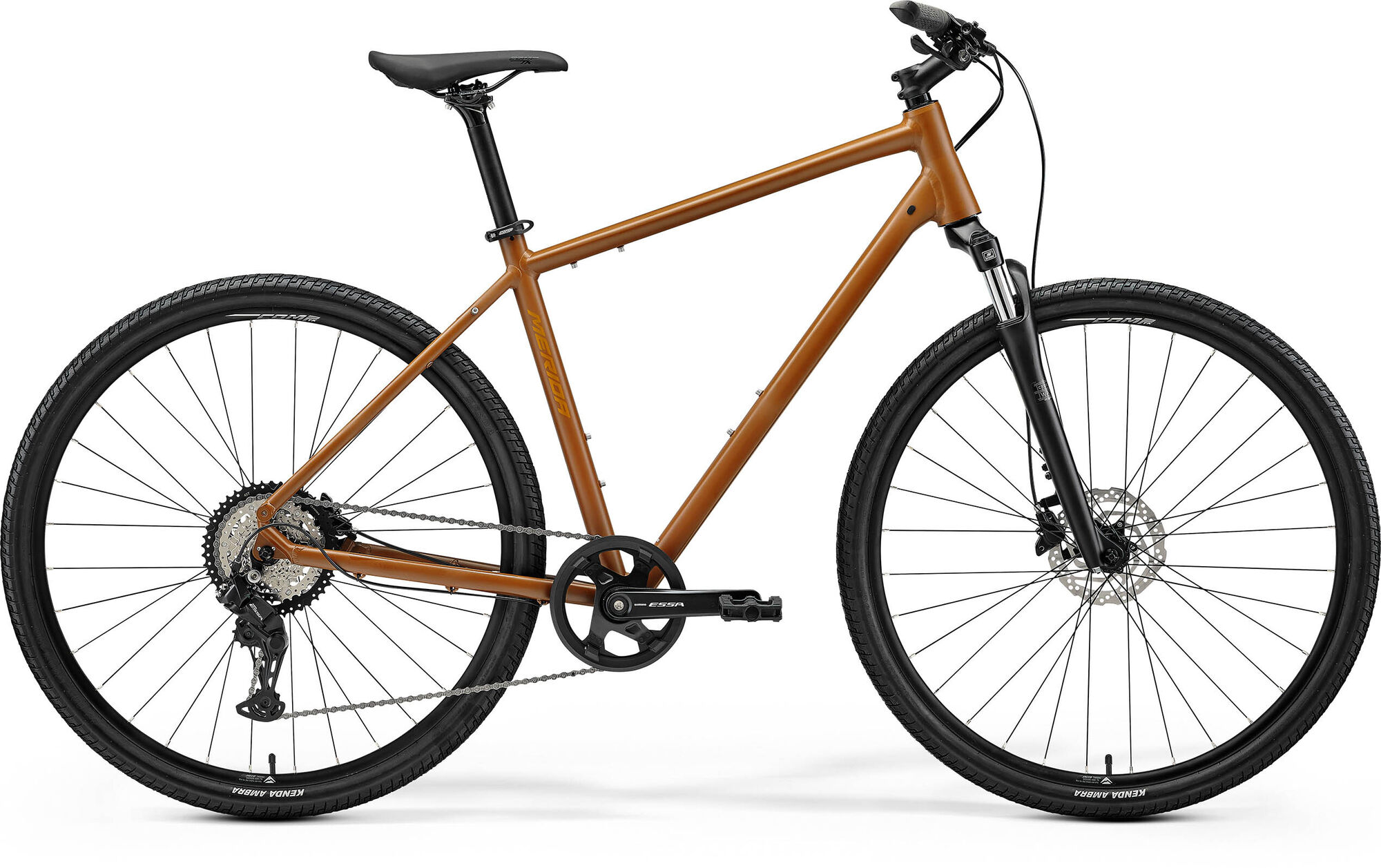

MERIDA Crossway 20
Pricing
£725.00
| Model Year | 2026 |
|---|---|
| Options | S Silk Fall Leaf Brown (Wild Honey) In Stock (Warehouse) M Silk Fall Leaf Brown (Wild Honey) In Stock (Warehouse) L Silk Fall Leaf Brown (Wild Honey) In Stock (Warehouse) |
| Style | Modern take on the hybrid bike with a 1 x transmission to keep things simple and save weight.The Crossway family are versatile bikes suitable for riding for fitness commuting and leisurely rides in the countryside. Their upright riding position is designed to provide a comfortable place to take in the surroundings. The frame has mounts for racks mudguards and a kickstand and EQ kits are available separately. |
| Frame | TFS IV - 6061 double butted technoformed aluminium tubing with internal cable routing. Tapered head tube, inboard disc mounts, BSA BB standard, 135 x 9mm QR axle standard. Mounts for rack, mudguards and kickstand. Max tyre size 700 x 50c |
| Forks | SR Suntour NEX DS; Coil; 63 mm travel; 700x50C max. tyre size |
| Rear Derailleur | Shimano Essa RD-U2000-8; GS |
| Shifters | Shimano Essa SL-315-8R |
| Chainset | Shimano Essa FC-U2001; 40 tooth chainset; material: aluminium; Crank length: 170mm |
| Bottom Bracket | Shimano UN101 LL123 |
| Chain | KMC Z8 |
| Cassette | Shimano CS-HG400-8; 11-45 teeth; 8 speed |
| Headset | Merida M2345 |
| Stem | Merida Comp CC; material: aluminium; 31.8 mm diameter; 17 degree rise |
| Handlebars | Merida Comp CC; material: aluminium; 680mm wide; 10mm rise |
| Front Brake | Shimano MT200; hydraulic brake with Shimano RT10; 160 mm |
| Rear Brake | Shimano MT200; hydraulic brake with Shimano RT10; 160 mm |
| Rims | Merida Comp TK; 17mm inner rim width; material: aluminium |
| Front Hub | Shimano TX505; 100x9mm; 32 Spoke; Centerlock |
| Rear Hub | Shimano TX505; 135x9mm; 32 Spoke; Centerlock |
| Spokes | Black steel |
| Tyres | Kenda Ambra K1278; 700x45C; wired |
| Saddle | Merida Comp TK |
| Seatpost | Merida Comp CC; material: aluminium; 30.9mm diameter; in-line |
| Pedals | VP VPE-891 |
| Grips | Merida Comp TK |
As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying.
