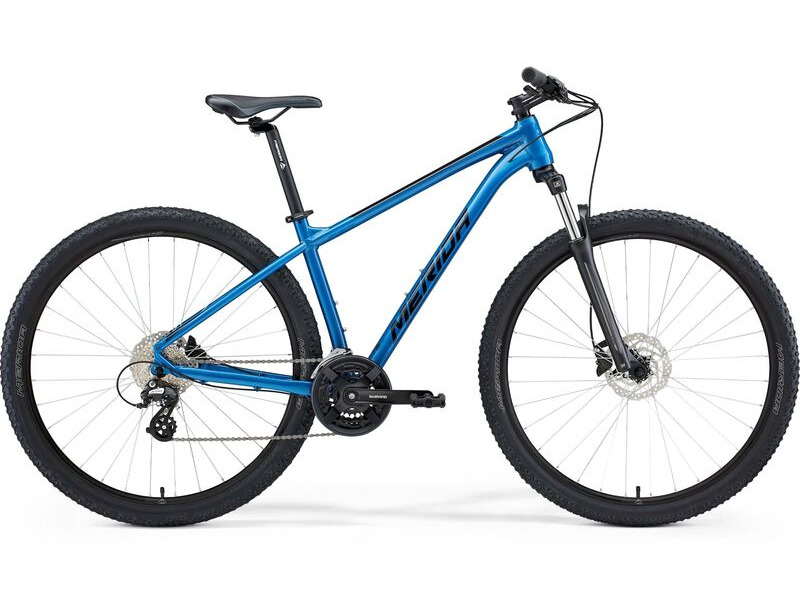

MERIDA Big Nine 15

MERIDA Big Nine 15 click to zoom image

Pricing
£600.00
In Store Now

Model Year 2023
Options (M) 17 Blue / Black In Store Now
(L) 18.5 Blue / Black In Stock (Warehouse)
(XL) 20 Blue / Black In Stock (Warehouse)
Style UK Exclusive - Entry level 29er upgraded to use the sophisticated TFS aluminium frame 24 gears hydraulic disc brakes and plenty of Shimano componentry including chainset and hubs.

Merida's heartland has always been bombproof aluminium hardtails. Half a century of frame building experience counts for a lot.

The UK version of the Big Nine and Big Seven 15 have been upgraded to use a sophisticated TFS frame featuring the latest technology:

full internal cable routing for a clean neat set up
tapered headtube offering the potential for future upgrades
inboard disc brake mounts protect the brake and maximise stopping power

As much Shimano componentry as possible has been added to complement the modern frame and enhance reliability.

There are a wide range of sizes; Big Nine for taller riders and Big Seven for shorter riders with a healthy overlap between the two.

For riders in the middle riding style can be taken into account. If you are looking for speed and efficiency choose a Big Nine if you are looking for agility choose a Big Seven
Frame TFS III - 6061 aluminium, double butted and technoformed. Tapered head tube. Chain stay mounted disc brake. Internal cable routing. Mudguard and kick stand mounts. BSA threaded BB. 135mm x 9mm axle. Max. tyre size 29 x 2.25
Forks Suntour XCT30; Coil; 100mm travel. Max. tyre size: 29 x 2.25
Rear Derailleur Shimano RD-M310
Front Derailleur Shimano FD-TY700
Shifters Shimano ST-EF505
Chainset Shimano TY301; 42-34-24 tooth chainset. Crank length: 175mm (M,L,XL)
Bottom Bracket FSA TH-7420ST-W, Cartridge Bearing
Chain Sunrace M84
Cassette Sunrace CSM558AU; 11-32 teeth; 8 speed
Headset Merida M2345
Stem Merida CC; aluminium; 31.8mm diameter; 6 degree rise - Stem length: 70mm (S), 80mm (M), 90mm (L), 100mm (XL), 110mm (XXL)
Handlebars Merida CC; aluminium; 690mm wide; 15mm rise
Front Brake Shimano BR-MT200; 2 piston hydraulic disc brake caliper with Shimano RT10; 160mm rotor
Rear Brake Shimano BR-MT200 hydraulic disc brake caliper with Shimano RT10; 160mm rotor
Brake Levers Shimano ST-EF505
Rims Merida CC; 17mm inner rim width; Aluminium
Front Hub Shimano TX505; 100x9mm; 32 spokes; Center lock
Rear Hub Shimano TX505; 135x9mm; 32 spokes; Center lock
Spokes Steel UCP
Tyres Merida K1080; 29 x 2.2; wire bead
Saddle Merida Sport comfort
Seatpost Merida CC; aluminium; 30.9mm diameter; 15mm lay back
Pedals VP Components, VPE-891
Grips Merida EC
As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying.
